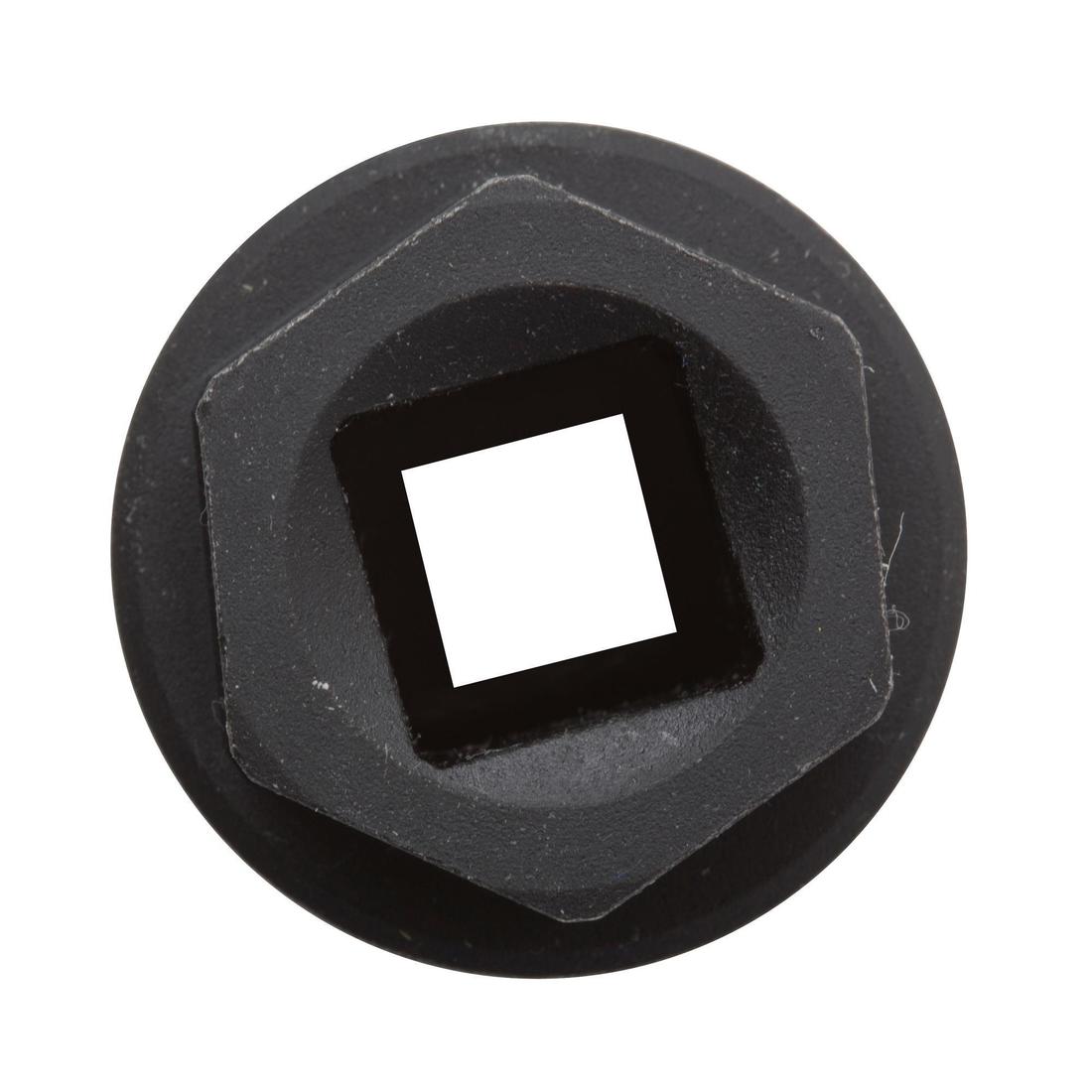

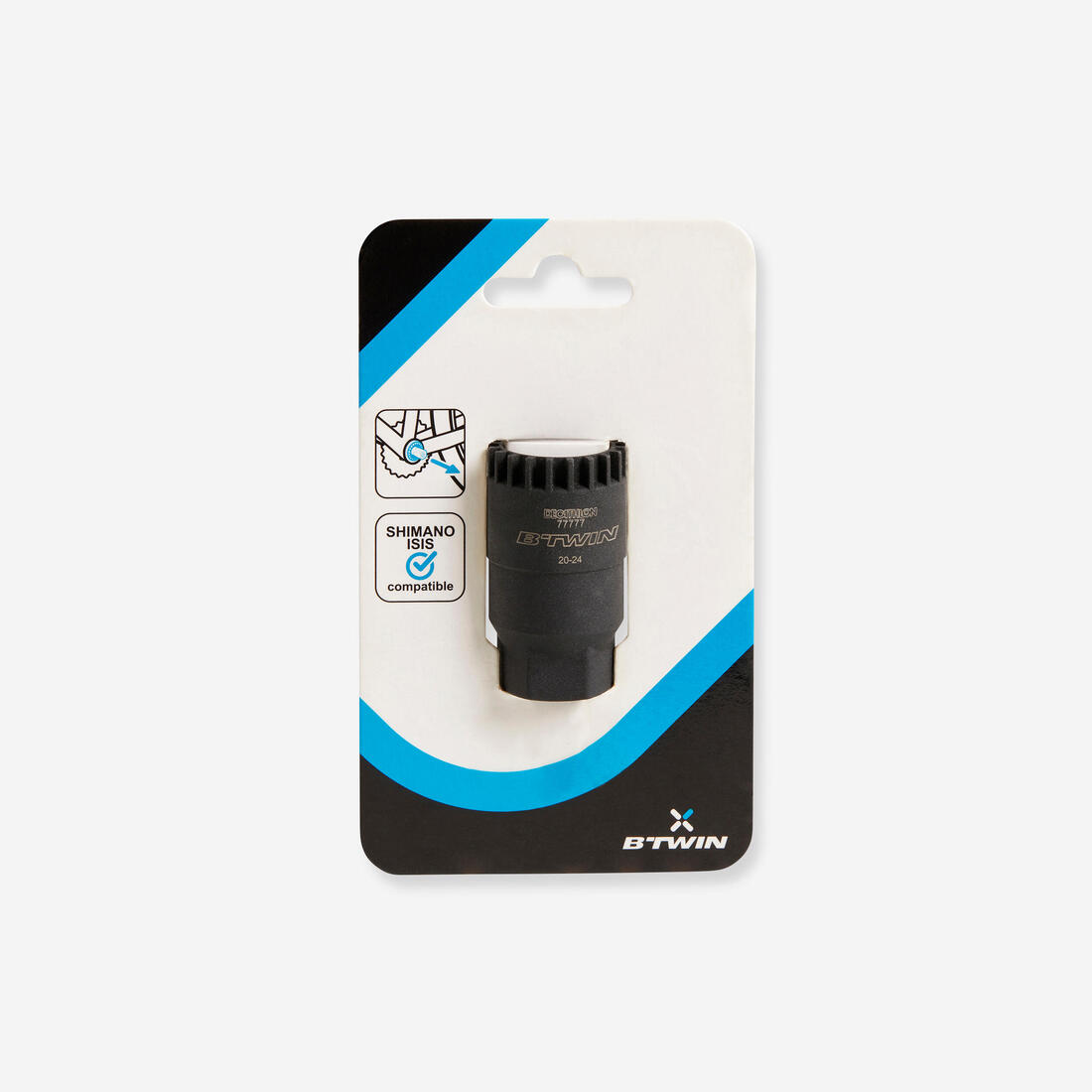

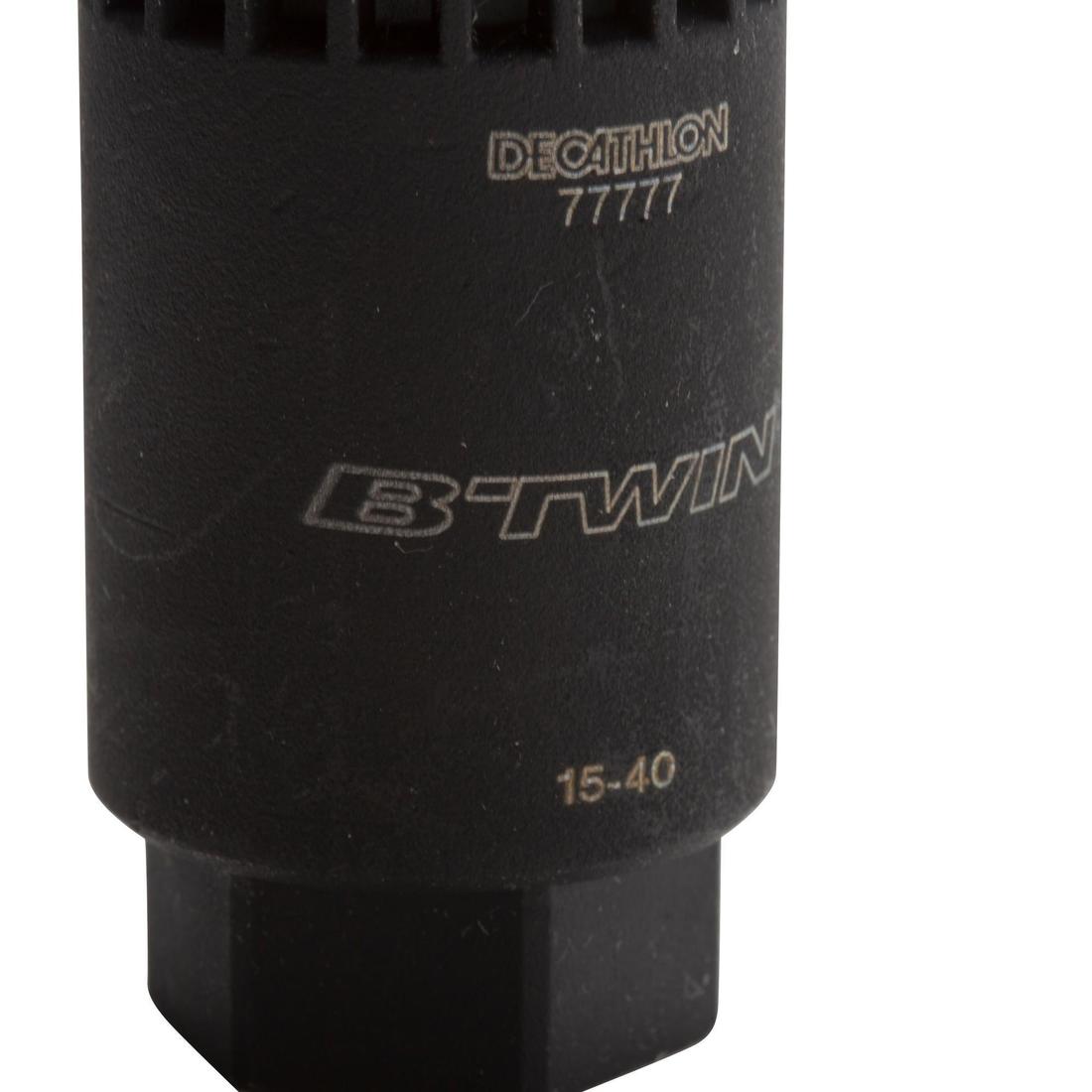

Internal bottom bracket removal tool (square taper octalink and isis)

Designed for mounting and removing square, Octalink and ISIS internal axle bottom brackets.

What is this tool used for?

The bottom bracket remover is used to remove the bottom bracket from the frame.It is essential for replacing or repairing this part of the bike.

What tool to use:

Can be used with a 1⁄2 socket, with a 24 mm open-end or adjustable wrench.

Compatibility:

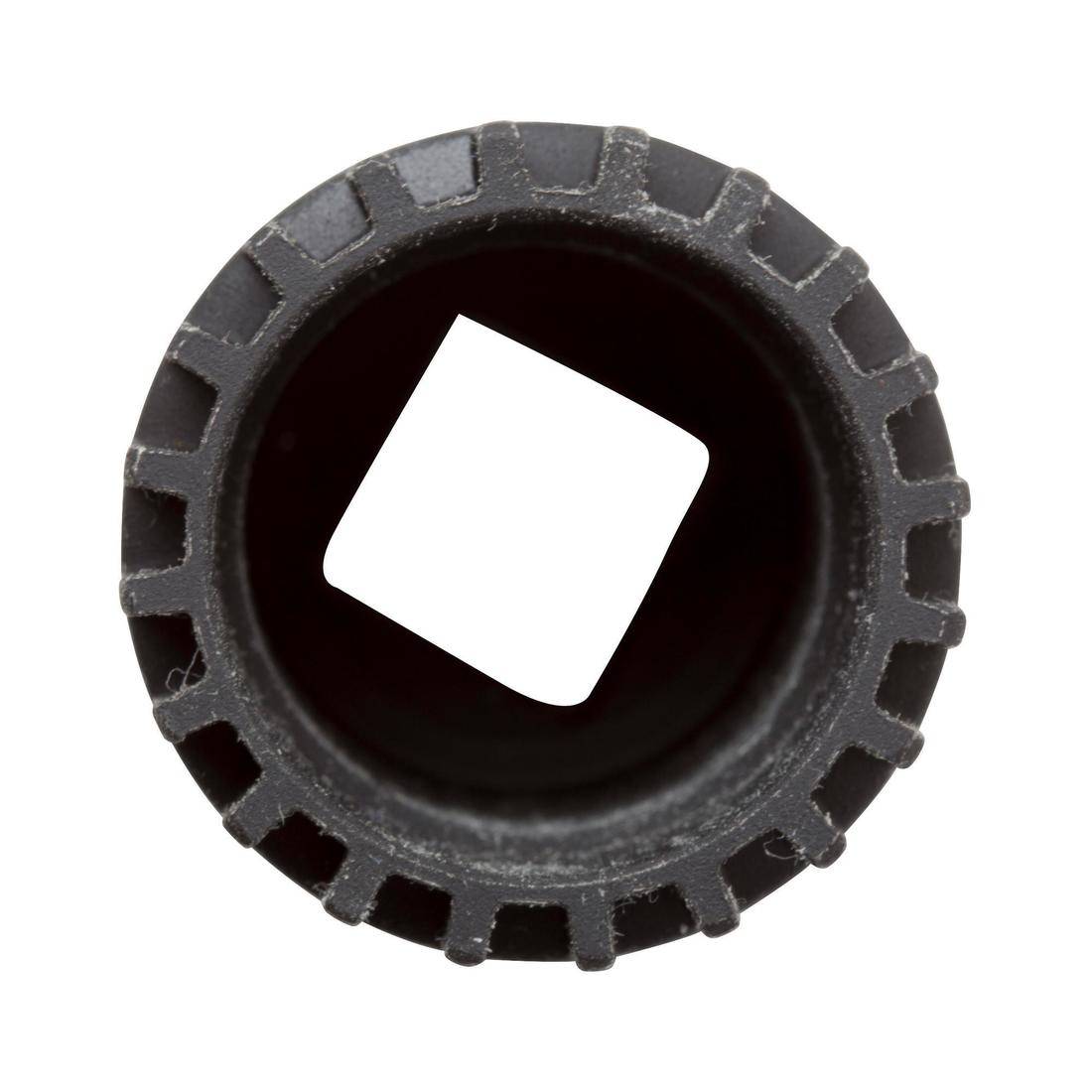

Compatible with 20-spline bottom brackets with a diameter of 32 mm, commonly found on many cartridge bottom brackets, including Shimano®, Truvativ®, Race Face®, FSA® and others. Also suitable for certain bottom bracket locknuts, including certain Race Face® models. Designed for oversized axles, such as those used with ISIS Drive and Octalink® cranksets.

Features:

Length: 258 mm Width: 66 mm Thickness: 10 mm Weight: 146 g Material: Steel that has undergone an electrophoretic coating process.

Advice from our team:

Have the bottom bracket tool, the 8 mm Allen key and its adapter ready. Unscrew the bottom bracket by turning it counter-clockwise.

Warranty:

2 years

This tool allows you to change your square, Octalink or ISIS internal bottom bracketsby adding an 8 mm Allen key and its adapter.

Designed for mounting and removing square, Octalink and ISIS internal axle bottom brackets.
